VSCode VDF Settings

Settings for configuring the behaviour of VSCode VDF

filesAutoCompletionKind

vscode-vdf.filesAutoCompletionKind

Controls the behaviour of suggesting autocompletion file items.

incrementalall

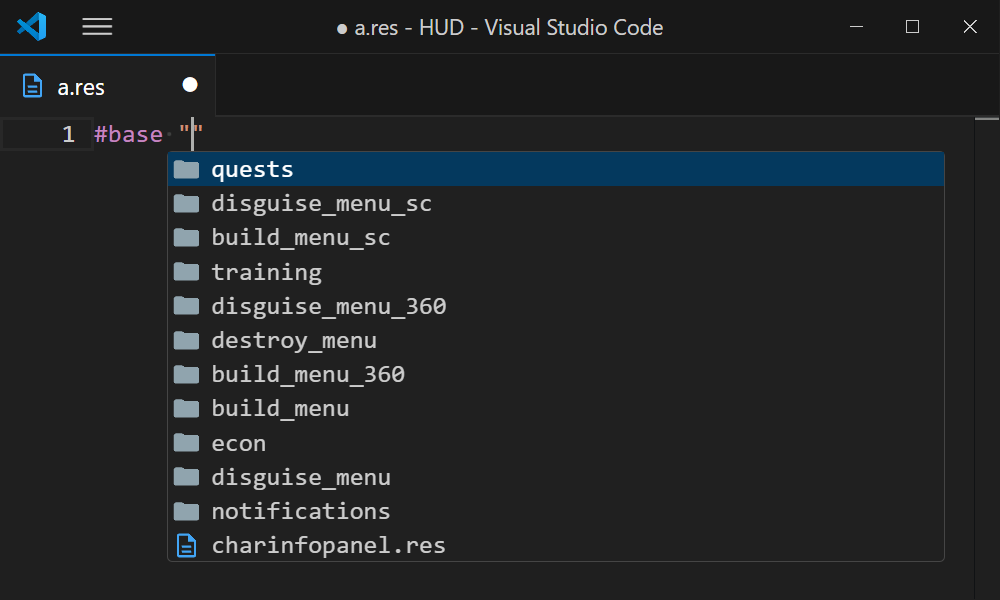

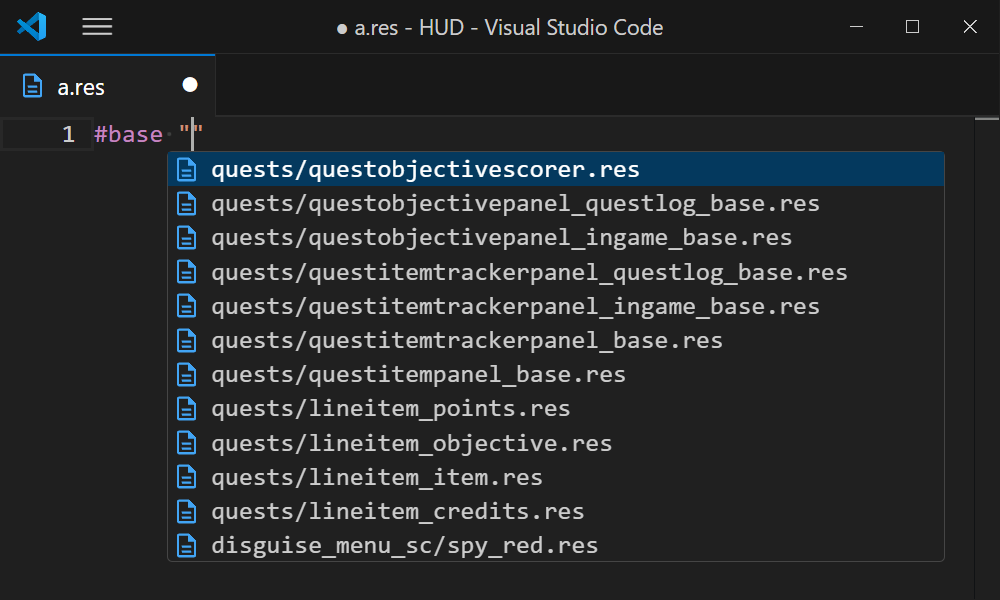

Suggests folders and files in current directorySuggests files only, recursively, with nested files seperated by /
incrementalall

Default: incremental

teamFortress2Folder

vscode-vdf.teamFortress2Folder

Path to Team Fortress 2 folder

Note

VSCode VDF will automatically attempt to locate your Team Fortress 2 folder via Steam based on your operating system by checking:

The registry key:

  • HKEY_LOCAL_MACHINE\SOFTWARE\Valve\Steam (x86)
  • HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\Valve\Steam (x64)

InstallPath


Caution

If Team Fortress 2 installation is not found, you will be prompted to select the path to your Team Fortress 2 folder

If you do not have Team Fortress 2 installed, click Don't show again or set teamFortress2Folder to ""

Default: C:/Program Files (x86)/Steam/steamapps/common/Team Fortress 2

updateDiagnosticsEvent

vscode-vdf.updateDiagnosticsEvent

Controls when to update file diagnostics

typesave
Update file diagnostics in real time.Update file diagnostics when the file is saved.

Default: type

vtf

formats

exclude

vscode-vdf.vtf.formats.exclude

List of VTF formats to skip showing a notification for when opening a VTF file with a format that is currently not supported.

This setting is modified by VSCode VDF when clicking Don't ask again in the Unsupported VTF format notification:

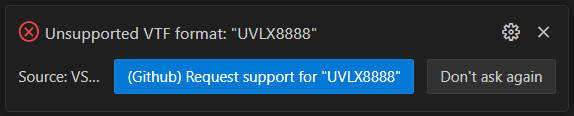

Unsupported VTF format notification

Possible List Values:

  • RGBA8888
  • ABGR8888
  • RGB888
  • BGR888
  • RGB565
  • I8
  • IA88
  • P8
  • A8
  • RGB888BlueScreen
  • BGR888BlueScreen
  • ARGB8888
  • BGRA8888
  • DXT1
  • DXT3
  • DXT5
  • BGRX8888
  • BGR565
  • BGRX5551
  • BGRA4444
  • DXT1OneBitAlpha
  • BGRA5551
  • UV88
  • UVWQ8888
  • RGBA16161616F
  • RGBA16161616
  • UVLX8888

Default: []

Note

The currently supported VTF image formats are

RGBA8888
ABGR8888
RGB888
BGR888
I8
A8
RGB888BlueScreen
BGR888BlueScreen
ARGB8888
BGRA8888
DXT1
DXT3
DXT5 BGRX8888

Including any of these formats in vscode-vdf.vtf.formats.exclude will have no effect

HUD Animations hudanimations

format

insertNewlineAfterEvents

vscode-vdf.hudanimations.format.insertNewlineAfterEvents

Whether to insert a newline after events when formatting.


ValueExample
false
event HudHealthBonusPulse
{
	Animate PlayerStatusHealthValue Fgcolor "0 255 0 255" Linear    0    0
}
event HudHealthBonusPulseStop
{
	Animate PlayerStatusHealthValue Fgcolor "255 255 255 255" Linear    0    0
}
true
event HudHealthBonusPulse
{
	Animate PlayerStatusHealthValue Fgcolor "0 255 0 255" Linear    0    0
}

event HudHealthBonusPulseStop
{
	Animate PlayerStatusHealthValue Fgcolor "255 255 255 255" Linear    0    0
}

Default: true

layoutScope

vscode-vdf.hudanimations.format.layoutScope

Controls the scope to align tokens with when formatting HUD animations.

Default: event

tabs

vscode-vdf.hudanimations.format.tabs

Controls the number of tabs to insert after a token when formatting HUD animations.

Default: 1

suggest

enable

vscode-vdf.hudanimations.suggest.enable

Enable/disable autocomplete suggestions.

Default: true

Popfile popfile

diagnostics

strict

vscode-vdf.popfile.diagnostics.strict

Whether to strictly allow only known keys.

Default: true

format

insertNewlineBeforeObjects

vscode-vdf.popfile.format.insertNewlineBeforeObjects

Whether to insert a newline before objects when formatting.

Default: true

quotes

vscode-vdf.popfile.format.quotes

Whether to surround tokens with double quotes when formatting.

Default: false

tabs

vscode-vdf.popfile.format.tabs

How many tabs to insert between keys and values when formatting. -1 = Insert a single space

Default: 0

suggest

enable

vscode-vdf.popfile.suggest.enable

Enable/disable autocomplete suggestions.

Default: true

vscript

enable

vscode-vdf.popfile.vscript.enable

Enable/disable VScript language support.

Default: true

waveStatusPreview

Settings for configuring the style of the Wave Status Preview

background

colour

vscode-vdf.popfile.waveStatusPreview.background.colour

Background colour for Wave Status Preview.

Default: rgb(31, 31, 31)

sky

Show/Hide sky for Wave Status Preview.

vscode-vdf.popfile.waveStatusPreview.background.sky

Default: true

font

bold

vscode-vdf.popfile.waveStatusPreview.font.bold

Bold font for Wave Status Preview.

Warning

Must be installed if not TF2 Build or TF2 Secondary.

Default: TF2 Build

regular

vscode-vdf.popfile.waveStatusPreview.font.regular

Regular font for Wave Status Preview.

Warning

Must be installed if not TF2 Build or TF2 Secondary.

Default: TF2 Secondary

language

vscode-vdf.popfile.waveStatusPreview.language

Possible Values:

  • English
  • Deutsch (German)
  • Français (French)
  • Italiano (Italian)
  • 한국어 (Korean)
  • Español-España (Spanish-Spain)
  • 简体中文 (Simplified Chinese)
  • 繁體中文 (Traditional Chinese)
  • Русский (Russian)
  • ไทย (Thai)
  • 日本語 (Japanese)
  • Português (Portuguese-Portugal)
  • Polski (Polish)
  • Dansk (Danish)
  • Nederlands (Dutch)
  • Suomi (Finnish)
  • Norsk (Norwegian)
  • Svenska (Swedish)
  • Magyar (Hungarian)
  • Čeština (Czech)
  • Română (Romanian)
  • Türkçe (Turkish)
  • Português-Brasil (Portuguese-Brazil)
  • Български (Bulgarian)
  • Ελληνικά (Greek)
  • Українська (Ukrainian)
  • Español-Latinoamérica (Spanish-Latin America)

Default: English

panel

enable

Show/Hide Wave Status Panel Background in Wave Status Preview.

Default: true

VDF vdf

format

insertNewlineBeforeObjects

vscode-vdf.vdf.format.insertNewlineBeforeObjects

Whether to insert a newline before objects when formatting.

Default: false

quotes

vscode-vdf.vdf.format.quotes

Whether to surround tokens with double quotes when formatting.

Default: true

tabs

vscode-vdf.vdf.format.tabs

How many tabs to insert between keys and values when formatting. -1 = Insert a single space

Default: 1

suggest

enable

vscode-vdf.vdf.suggest.enable

Enable/disable autocomplete suggestions.

Default: true

VMT vmt

format

insertNewlineBeforeObjects

vscode-vdf.vmt.format.insertNewlineBeforeObjects

Whether to insert a newline before objects when formatting.

Default: false

quotes

vscode-vdf.vmt.format.quotes

Whether to surround tokens with double quotes when formatting.

Default: true

tabs

vscode-vdf.vmt.format.tabs

How many tabs to insert between keys and values when formatting. -1 = Insert a single space

Default: 1

suggest

enable

vscode-vdf.vmt.suggest.enable

Enable/disable autocomplete suggestions.

Default: true
